Android 6.0 350cd/m2 220W LCD Interactive Touch Screen

Product Categories
Shenzhen Yoda Views Technology Co., Ltd
Contact Now

Android 6.0 350cd/m2 220W LCD Interactive Touch Screen

  • 1
  • 2

Brand Name : YODA

Model Number : Y86AIO/TS-AP01

Certification : CE,ROHS,FC

Place of Origin : Guangdong

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000PCS/per month

Delivery Time : Within 25 days after order upon payment receiving

Packaging Details : Ply-wood Box,foam in the Carton Box/ Honeycomb Box

Dimension : 1991.1mmx1212.6mmx125.6mm

Size : 86 inch

Panel Type : a-Si TFT-LCD

Warranty : 1 year

Response time : 6ms

Depth Color : 16.7M

Storage Temperature : -10℃~70℃

Color : White/Black/Silver

Contact Now

Dual System LCD Interactive Touch Screen All In One PC For Conference


Details of product:

1.The machine itself comes with 5G hotspot.
2.The supported image formats are JPG,BMP,PNG, and GIF.
3.Switch between single and multi-touch modes.
4.The working time can be as long as 50,000 hours, so the product life need not worry.
5.Various version, different configurations, different prices.
6.Including dual system configuration and conference software, not only for teaching but also for conferences.
7.The appearance of the whole machine is composed of aluminum alloy two-color front shell and plastic back shell.
8.The appearance design is very thin, the touch use effect is good.

Display Information
Screen Size 55inch 65inch 75inch 86inch
Panel Type a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD
Aspect Ratio 16:9 16:9 16:9 16:9
Resolution 3840*2160P 3840*2160P 3840*2160P 3840*2160P
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Brightness 320cd/m2 350cd/m2 350cd/m2 350cd/m2
Active Area 1209.6x 680.4mm 1428.48x803.52mm 1649.664x927.936mm 1913x1084mm
Contrast Ratio 4000:1 4000:1 1200:1 1200:1
Response Time 8ms 8ms 8ms 8ms
Display Color 8 bit 1.67M 8 bit 1.67M 10 bit 1.07B 10 bit 1.07B
Field Frequency 60Hz 60Hz 60Hz 60Hz
Service Lifetime ≥60,000 hours ≥60,000 hours ≥60,000 hours ≥60,000 hours
Touch System
Sensing Type Infrared System (Multi 10 point touch)
Response Time 6ms
Connection Full-speed USB (Driver free)
Surface Protection Tempered Glass with 4mm thickness Standard
Graphic card Intel HD Graphics, Supports 1080P, H264, 3D play
Bluetooth Bluetooth4.0
Speaker 15W x2
Network WIFI/ RJ45
Port USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1
Built-in Dual System Android and Windows
Operating System Android 6.0
CPU Quad Core Cortex A7 1.8 GHZ
RAM DDR3 2G
ROM 32G
SD card slot Support MAX 128G
Port RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1
Languages English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc
Power
Power Supply 96~264V AC, 50/60Hz
Power Consumption 220W~500W
Operating Temperature 0℃~50℃
Storage Temperature -10℃~70℃
Supplied Accessories AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard software
Ambient Conditions
Dimension (L*W*H) 1290.5*817.6*99.3mm 1516.3*947.1*96mm 1737.7*1072.6*103mm 1991.1x1212.6x125.6mm
Package L*W*H 1427*963*232mm 1646*1062*230mm 1860*1230*260mm 2136*1370x280mm
Net weight 40KG 50KG 68KG 76KG

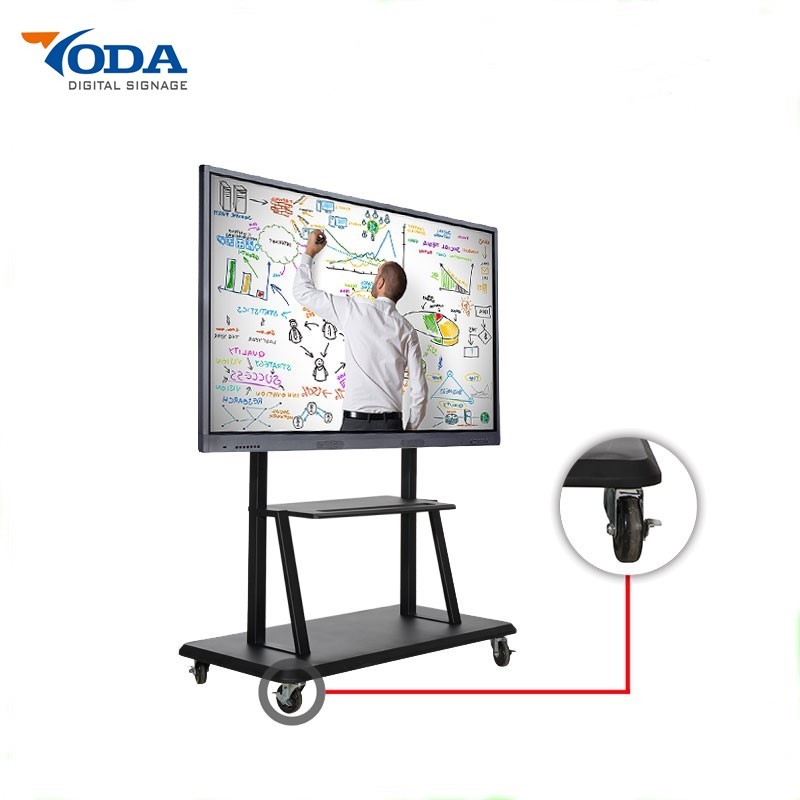

Real-picture

Android 6.0 350cd/m2 220W LCD Interactive Touch Screen

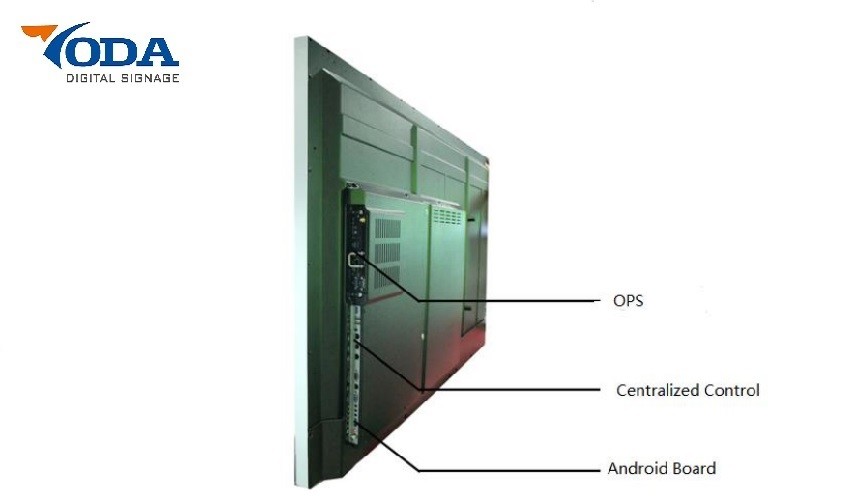

Product's details


Android 6.0 350cd/m2 220W LCD Interactive Touch Screen

Application



Android 6.0 350cd/m2 220W LCD Interactive Touch Screen

FAQ

Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special requirements.
2)Proforma Invoice will be made and sent for your approval.
3)Production will be arranged upon receipt of your approval and payment or deposit.
4)Goods will be delivered as stated on the proforma invoice.

Q:What about the quality of your products?
A:We provide unrivaled quality:very rigorous testing process for incoming quality control,input process quality control,and final quality control for every piece.We follow QC test procedure,and do 100% FQC to ensure your satisfaction.

Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special requirements.
2)Proforma Invoice will be made and sent for your approval.
3)Production will be arranged upon receipt of your approval and payment or deposit.
4)Goods will be delivered as stated on the proforma invoice.

Q:Do you have any After-Sales service?
A:Yes!Our products have professional After-sales Department.

If you have any technical problem or question with the goods,welcome to contact us directly.

Q:Can you put my brand name (logo) on these product?
A:Yes. We can provide professional OEM services.Our campany accepts to make the
logo free for bulk orders.
